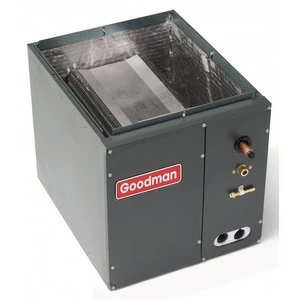

Best deal 🥰 Goodman CAPF Series 17-1/2 in. 2.5 – 3 Ton Downflow and Upflow Cased Coil for Split-System Air Conditioner 👍

Original price was: $283.11.Current price is: $91.99.

SKU: 5051192 Categories: Coils, Residential Equipment Tag: Galvanized Steel

Multiple safe payment methods
Protect Your Information, Shop with Safe Payments
Multiple payment methods, 100% payment security
Safe Transactions, Always

HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.

Optimized for use with R-410A refrigerant

Some models suitable for use with R-410A or R-22 refrigerant

CAPT models feature factory-installed thermal expansion valves for cooling and heat pump applications

Check flowrater for cooling and heat pump applications

Split seam front for easy access

Foil-faced insulation covers the internal casing to reduce cabinet condensation

Rust resistant and thermoplastic drain pans featuring a low water-retention design

DecaBDE-free thermoplastic drain pan with secondary drain connections

AHRI Certified

AMP	28.6, 30
Material	Galvanized Steel
Weight	46
Watts	5
Volts	208/230/460V
UL Listed	No
Type	GCAPF3137B6
Tonnage	2.5 – 3 Tons
Suction Line OD	3/4 in
SEER	13
Refrigerant	R-410A
Product Type	Evaporator Coil
Power Source	Electric
Phase	Three Phase
Max CFM	969
MBH	24
Application	Split System Air Conditioner
Liquid Line OD	3/8 in
Indoor Outdoor	Indoor
Height	30 in
Energy Star Compliant	No
ETL Listed	Yes
Depth	21 in
Configuration	Downflow, Upflow
Collection	CAPF Series
Coil Type	Cased
Coating	Painted
Case Included	Yes
Blower Type	Direct Drive
BTU Cooling Rating	36000 Btu/h
BTU	24000
Width	17-1/2 in
